Vibratory Tandem Roller delivers efficient compaction output for confined‑space road‑construction and repair assignments. It handles soil, gravel, and asphalt compaction where large‑size compaction machinery cannot access narrow work zones. This compact compaction unit helps contractors shorten site working cycles and cut labour expenditure amid insufficient skilled operators across regional job sites. Procurement parties may match proper drum configuration, power assembly, and excitation force according to site space, compacted materials, and daily working volume.
Project Pain Points & Targeted Solutions For Small Road Roller
Traditional large‑scale compaction machinery meets obvious application restrictions on many renovation projects. Heavy‑duty rollers cannot enter narrow zones such as municipal trenches, sidewalks, parking lot edges, and landscape work sites. Manual tamping consumes plenty of manpower and cannot guarantee consistent compaction density. Multiple scattered small‑scale repair projects require frequent equipment transit, and renting large rollers brings extra operating expenditure. Many purchasers balance compaction performance, site accessibility, and whole‑project budget.
When calculating overall site expenditure, buyers shall assess long‑term operating cost instead of focusing merely on initial procurement outlay. A well‑configured Vibratory Tandem Roller relieves labour pressure and improves construction consistency for scattered municipal repair assignments.
Complete Technical Parameter Table For Vibratory Tandem Roller
| Model | YG-600S | YG-600D | YG-850 | YG-880 |
| Type | Walk-behind | Walk-behind | Ride-on | Ride-on |
| Drum number | 1 | 2 | 2 | 2 |
| Engine power | 5.5Hp | 6.0Hp | 6.0Hp | 25Hp |
| Walking speed | 2.4km/h | 0-4km/h | 0-4km/h | 0-5km/h |
| Walking type | Two-side | Two-side | Two-side | Two-side |
| Drive Type | Hydraulic | Hydraulic | Diesel | Hydraulic |
| Drum size | 426*600 | 426*600 | 580*700 | 800*850 |
| Vibrate force | 15KN | 25KN | 35KN | 50KN |
| Climbing ability | 25% | 30% | 30% | 30% |
| Weight | 330kg | 550kg | 750kg | 1000kg |

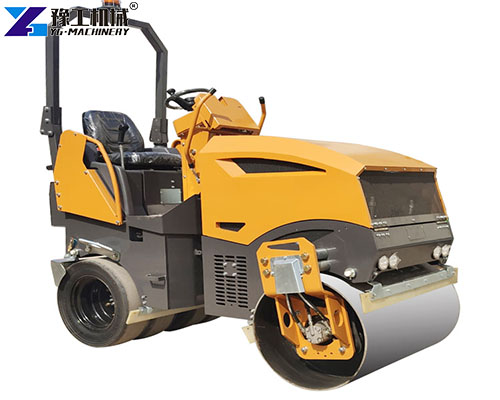

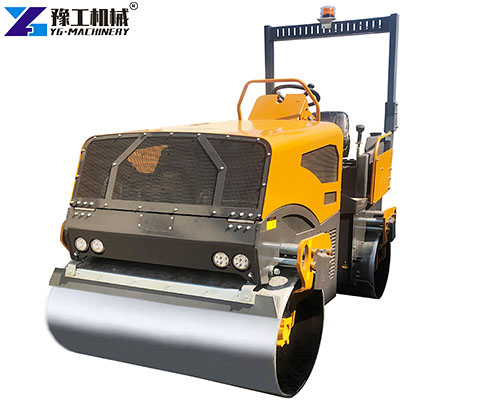

Four gradient models cover walk‑behind single‑drum, walk‑behind double‑drum and ride‑on tandem configurations. Compact frame design achieves a small turning radius for operation within restricted‑width sites. Reserved lifting points simplify loading and cross‑site transportation. Project evaluators can compare different configuration sets of YG Road Roller before finalising project procurement budgets.
Core Equipment Performance & Working Principle Of Asphalt Road Roller
This compaction device adopts a hydraulic travelling drive together with a mechanical centrifugal vibration clutch for 70 Hz high‑frequency excitation. Combined static pressure and vibration effect lowers void ratio and enhances compaction density for soil, asphalt, and backfill gravel materials. Tandem‑drum units realise synchronous front‑and‑rear compaction and reduce repeated travelling passes. Walk‑behind versions adopt adjustable operating handrails to accommodate operators of different heights. Anti‑corrosion coating reinforces structural impact resistance for harsh construction‑site environments. Both gasoline and diesel power options are available; selected gasoline versions support EPA certification for North‑American markets, and whole‑unit CE certification can be supplied. Brief‑period training enables on‑site operators to finish routine tasks. The equipment maintains a low failure rate, and regular maintenance mainly consists of engine oil replacement and drum surface cleaning.
A properly tuned Vibratory Tandem Roller supports fast multi‑site transfer carried by light‑duty trucks and suits engineering‑rental‑company business patterns. This compact compaction unit is designed for narrow‑range partial compaction tasks and cannot replace large‑size heavy‑duty road rollers for thick‑layer high‑grade highway base compaction; proper flat ground is required for stable travel, and worn vibrating bearings and sealing parts need periodic inspection and replacement under long-term continuous operation.
Standard Working Scenarios For Small Road Roller Reference
- Municipal road maintenance: Sidewalk repair, narrow‑lane asphalt overlay compaction
- Trench back‑filling: Soil and gravel compaction around underground pipeline trenches
- Parking‑lot construction: Edge compaction for small‑size parking areas
- Landscape engineering: Foundation compaction for garden paths and recreational zones
Actual site width, material type, and daily working hours determine model selection. Short‑term intermittent repair tasks prioritize walk‑behind units, while long‑duration continuous‑operation projects favour ride‑on‑type configurations. Specification selection should match real‑world construction requirements rather than pursuing excessive excitation‑force parameters.
Procurement Cost‑Saving Advantages When Comparing Vibratory Tandem Roller Models
Compact dimensions expand usable working scope without leasing large heavy‑duty compaction machinery. Low daily maintenance demand cuts long‑term servicing expenditure. Multiple power‑assembly selections adapt to fuel‑supply conditions across different regions. Light‑weight body lowers transportation expense for multi‑site project deployment. Diversified‑grade product portfolio satisfies light‑repair through medium‑intensity continuous‑compaction requirements, avoiding over‑spec procurement waste.
Contractors can evaluate Asphalt Road Roller-related configuration proposals before ordering to prevent losses caused by mismatched equipment and on‑site operating conditions.
Professional Model Selection Guide For Asphalt Road Roller Projects
Select FVR‑600S or FVR‑600D walk‑behind versions for light patch‑repair and narrow‑trench assignments. Choose FVR‑850 or FVR‑880 ride‑on tandem units for long-term continuous compaction work. Confirm local certification requirements for target export regions. Verify site maximum gradient and reserved operating width in advance. Many engineering contractors inspect site conditions and compare comprehensive offers of Small Road Roller from multiple suppliers for cost‑effective purchasing decisions. Operators shall arrange periodic inspections of vibration bearings and sealing components under heavy‑load continuous operation.
Frequently Asked Technical Questions About Small Road Roller & Configuration
Before submitting inquiries, numerous global purchasers intend to confirm configuration boundaries, site prerequisites, and delivery details of the Vibratory Tandem Roller. Below are representative technical questions raised by overseas B‑side buyers.
A1: It applies to partial narrow‑zone work; heavy‑duty large road rollers are required for high‑grade highway base compaction.
A2: Multiple power assemblies are selectable according to regional fuel supply situations.
A3: Main work includes engine‑oil replacement and drum surface cleaning; vibration‑related wearing components need regular inspection.
Factory Supply & Overseas Service For Vibratory Tandem Roller Inquiries
Each complete set includes a standard sprinkler anti‑stick asphalt system and matched accessories. Buyers receive English operation‑maintenance documents, full export customs‑clearance papers, remote technical guidance, and continuous supply of wearing spare parts. For cross‑border infrastructure projects, qualified compact compaction units can be shipped with complete export documentation. Global clients may reach out for a custom‑tailored project proposal and request a free quotation.
