EV charging pile converts industrial grid AC power into adjustable DC to charge EV lithium batteries safely. It differs from low-power household AC chargers with faster replenishment speed and complete commercial operation management modules.
Unified Complete Technical Parameter Table For Electric Vehicle Charging Pile
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| Output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single-gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Complete Working Principle Of EV Charging Pile
The full charging workflow contains four standardized automatic phases. It receives three-phase industrial alternating current and finishes EMI filtering and AC-DC rectification via parallel power modules.
Commercial EV chargers for sale establish real-time data communication with the vehicle BMS to dynamically adjust output voltage and current according to battery SOC and temperature. Multiple sensors monitor operation status all the time; the system cuts power instantly when faults are triggered and terminates charging automatically after full capacity.
7 Core Competitive Advantages Of Commercial EV Chargers For Sale
- Modular Power Design: Independent power modules support hot swap; a single module failure will not halt the whole cabinet operation.
- Dual-Gun Power Sharing: Two standard charging ports support simultaneous charging for two EVs with balanced load distribution.
- Global Connector Compatibility: Matches CCS and GB plugs, compatible with Tesla, BYD, Volkswagen, and all mainstream EV brands.
- Scalable Power Capacity: Modular power upgrade without cabinet replacement. Operators deploy EV charging piles to extend customer stays and earn stable charging income.
- Heavy-Duty Outdoor Cabinet: 1.5mm powder-coated cold-rolled steel, stable performance under harsh rainy, high-temperature outdoor conditions.
- Cloud Intelligent Platform: Remote revenue statistics, real-time fault alarm, and OTA firmware upgrade via network module.
- Low Annual Operation Cost: Annual maintenance expense only accounts for 2%-3% of total equipment purchase cost.

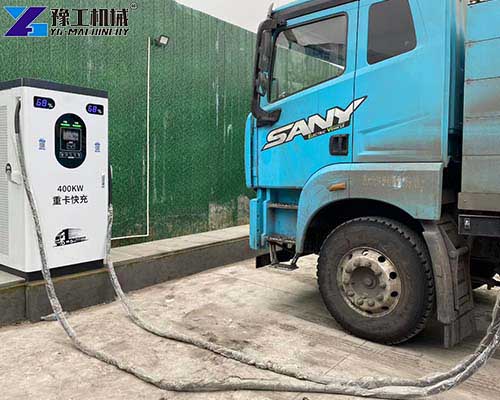

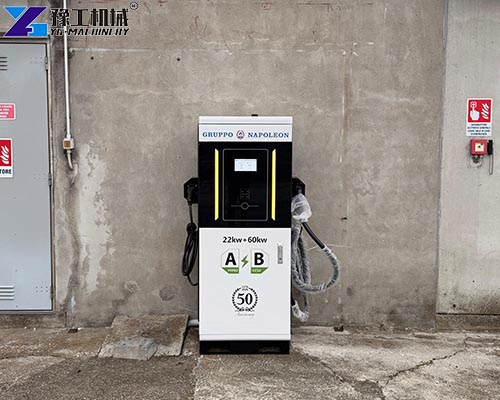

Global Full-Scene Application Fields Of EV Charging Pile
- Residential Compound Parking Lots: Daily fast charging for private EV owners
- Shopping & Retail Commercial Parks: Value-added charging service for visitors
- Highway Service Stations: Emergency rapid replenishment for long-distance passenger vehicles
- Logistics & Delivery Distribution Bases: Batch charging for electric delivery fleets
- Bus & Taxi Terminals: High-frequency energy supply for public transport vehicles
- Hotel & Office Building Parking: Free or paid charging for staff and guests
- Factory Industrial Parks: Internal employee EV charging facilities
- Independent Commercial Charging Stations: Specialized profit-making energy service hubs.
Step-By-Step Model Matching Guide For Electric Vehicle Charging Pile
- Power Selection: 60/80KW for small residential lots; 120KW as a universal mainstream commercial model; 160-320KW for large logistics hubs.
- Grid Matching: A single 120 kW unit requires a minimum 150kVA transformer with a 20% power margin to avoid overload tripping.
- Climate Adaptation: Wide-temperature design fits all global climates. Contractors bulk-purchase EV charging piles to standardize overseas station equipment.
- Installation Form: Floor-standing type for open outdoor parking areas; wall-mounted version for underground indoor lots.
- Traffic Matching: Dual-gun cabinets recommended for high-foot-traffic commercial zones; single-gun models for low-volume venues.
Frequently Asked Questions About Commercial EV Chargers For Sale
A1: Not recommended. Household grid capacity cannot support 120KW input; a 7kW AC slow charger is the proper choice for home use.
A2: Yes, it equips universal CCS and GB standard ports, fully compatible with Tesla, BYD, Volkswagen, and mainstream EV models.
A3: Yes, the IP54 whole unit and waterproof gun prevent leakage. Investors contact sales for custom layouts & factory prices of EV charging piles.
A4: At least a 150kVA transformer with an extra 20% power reserve to prevent frequent overload trips.
A5: Maintenance expenditure is low; only wear parts and electricity need investment, occupying 2%-3% of the equipment price per year.
A6: Yes, the modular structure allows power expansion by adding internal power modules without cabinet replacement.

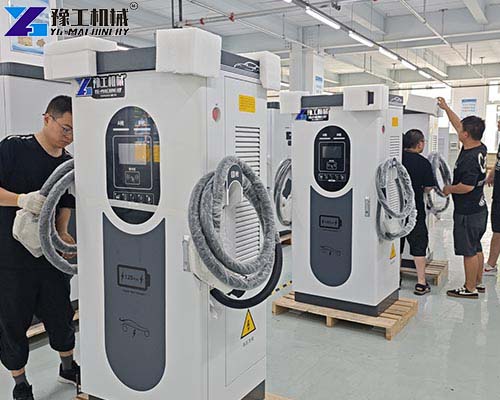

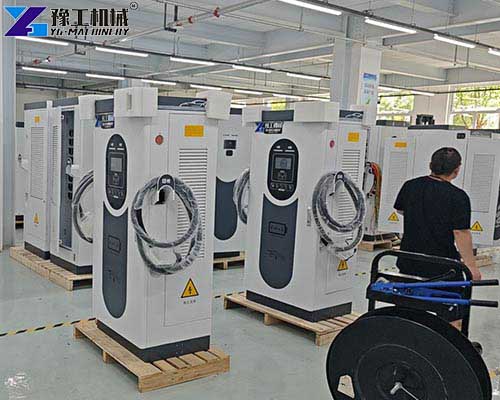

Factory Supply & Global After-Sales Support Of EV Charging Pile
YG Machinery independently develops and manufactures a full series of DC fast charging equipment. Every unit passes continuous aging and waterproof testing before seaworthy export packaging. We provide complete technical documents, multilingual operation manuals, and long-term discounted spare parts. Submit your target hourly charging volume, local grid conditions, and application scenario to receive tailor-made station layout plans and overseas operation case videos. International charging station builders and fleet managers can order electric vehicle charging piles with full technical remote video troubleshooting support.
