Paint line marking machines draw traffic regulations, directional arrows, and safety borders on asphalt and concrete surfaces, split into two mainstream categories: thermoplastic hot-melt and cold spray. Paint line marking machines account for 90% of global highway projects for superior wear resistance and night retroreflective performance.
Unified Complete Technical Parameter Table For Road Striping Machine

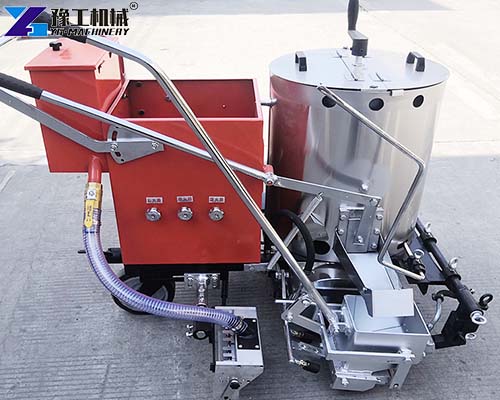

Electric Thermoplastic Hand-Push Models
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | Synchronous clutch spreading, equipped with a speed-adjustable gear-shifting device; single/double spreading can be selected according to needs; 50- 200 mm | Synchronous clutch spreading, equipped with a speed-adjustable gear-shifting device; single/double spreading can be selected according to needs; 50- 200 mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Gasoline Cold Spray Airless Models
| Model | YG-6L Single Gun | YG-8L Double Gun |
| Load Flow | 6L/min | 8L/min |
| Maximum Output Pressure | 25mpa | 30mpa |
| Nozzle Standard Configuration | 15’’/17’’ | |
| High-Pressure Pipe Strength | 35mpa | 40mpa |
| High-Pressure Pipe Length | Ф6*10m | Ф6*2 Ф10*10m |
| Weight | 72kg | 128kg |
| Maximum Spray Width | 20cm | 45cm |
| Engine Power | 4.3HP | 7HP |
Every machine supports smooth, straight, and curved marking via a tunable rear wheel directional lock.
Complete Working Principle Of Paint Line Marking Machine
Two independent operation workflows fit different coating materials for pavement jobs. Thermoplastic units heat resin coating to 180–210°C inside insulated barrels before synchronous extrusion and glass bead scattering. Road marking equipment for sale: cold spray units pressurize liquid paint via plunger pumps for room-temperature airless spraying without heating. Operators adjust travel speed and interchangeable buckets to control line thickness and width. Municipal road crews deploy it to finish large-area marking without frequent material refills.
8 Core Competitive Advantages Of Road Marking Equipment For Sale
- Synchronous Spreading Gearbox: Switch single or double coating layers freely to match thickness specifications.
- Full-Range Width Adaptation: Interchange buckets to cover 100–450mm to fit highway, parking, and track standards.
- Constant-Temperature Insulated Tanks: Prevent premature coating solidification during long continuous shifts.
- Full Auxiliary Compatibility: Compatible with hot melt kettles, primer sprayers, and sweepers for full marking workflows. Buy a paint line marking machine to cut labor and prolong marking lifespan.
- Long-Cycle Lithium Power: 5-hour single-charge runtime eliminates generators for remote off-grid sites.
- Flexible Steering Assembly: Tunable bead spreader and rear wheel lock produce distortion-free curved lines.
- Dual Construction Options: Hot-melt for high-traffic roads; cold spray for low-temperature temporary projects.
- Quick-Clean Pipeline System: Integrated flushing cuts post-job maintenance time by over half.
Global Full-Scene Application Fields Of Paint Line Marking Machine
- Municipal & Highway Works: Lane separators, crosswalks, stop lines, and traffic warning signs
- Parking Lot Management: Parking bays, directional arrows and no-parking boundary markings
- Airport & Port Zones: Runway guides, taxiway borders and cargo hazard labels
- Sports Venues: Athletic tracks, basketball courts and public playground dividing lines
- Factory & Warehouse Premises: Pedestrian aisles, loading bays and safety hazard zones
- Rural & Temporary Roads: Low-traffic village lanes and short-term construction zone lines
Step-By-Step Model Matching Guide For Road Striping Machine
- Traffic Volume Matching: Thermoplastic units deliver a 2–4-year service life for busy highways; cold spray lasts 6 months for temporary lots.
- Climate Matching: Cold spray operates stably under 0°C for frigid northern regions; hot-melt suits temperate and tropical zones.
- Scale tip: YG-8L double gun for large parking lots, YG-6L single gun for small repairs. Bulk order road marking equipment for sale to unify marking machine standards for overseas branch projects.
- Line Width Matching: Select multi-size interchange buckets if projects require variable marking dimensions regularly.
- Mobility Matching: Lightweight YG-CK380S suits frequent small-site transfers; YG-CK360S fits long highway marking shifts.
Frequently Asked Questions About Road Marking Equipment For Sale
A1: Hot-melt lines dry in 6 seconds and last 2–4 years; cold spray requires 2-hour curing and only survives roughly 6 months.
A2: The built-in 48V 15AH lithium battery supports 5 hours of independent marking without external power sources.
A3: Yes, this upgrade improves night visibility on main roads. Contact sales for custom plans & factory prices of the paint line marking machine.
A4: Adjustable glass bead spreader and rear wheel directional lock ensure stable curved line performance.
A5: Interchangeable marking buckets from 100mm to 450mm cover all mainstream construction specifications.
A6: Supporting gear includes hot melt kettles, primer sprayers, and road sweepers for complete marking workflows.

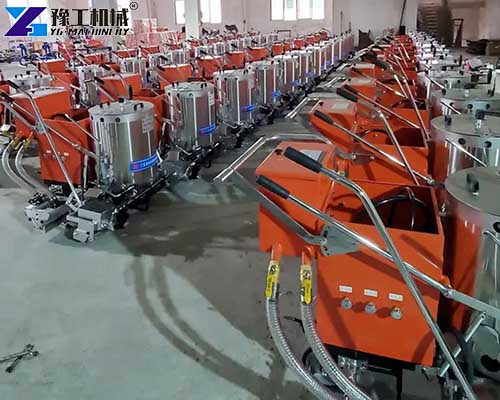

Factory Supply & Global After-Sales Support Of Paint Line Marking Machine
All marking machines pass continuous operation and pressure aging testing before seaworthy wooden export packaging. Multilingual operation manuals, hydraulic circuit diagrams, and discounted wear spare parts ship alongside each unit. Our team provides free project planning for the road striping machine layout design and online operation training for global dealers. International construction suppliers can book bulk shipments with 48-hour remote video troubleshooting and long-term spare part supply agreements. We welcome your inquiries and can provide you with a free factory price quote!
