Cutter suction dredger for sale delivers fully wireless, shore-based remote operation to eliminate manual underwater entry. Conventional confined-space desilting, such as sewer pipelines and inspection wells, brings severe safety threats to construction crews, including toxic gas inhalation and entrapment in narrow, unventilated zones.
This intelligent tracked desilting unit operates and removes sediment autonomously. The manufacturer launches six complete models covering electric and diesel power, with flow output ranging from 100 to 250 cubic meters per hour to fit small renovation jobs and large water conservancy contracts.
Unified Complete Technical Parameter Table For Dredge Cutter
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
| Robot dimensions | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate(cubic meters/ hour) | 100 m³ | 100m³ | 200m³ | 200m³ | 200m³ | 200m³ |
| Hydraulic station dimensions(mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main motor power | 22kw | 22kw | 30kw | 30kw | 30kw | 45kw |
| Hydraulic system pressure | 0-16Mpa | |||||
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling system speed | 0-10r/min | |||||
| Hydraulic hoses | 50m (Standard configuration) | |||||
| Control system | Wireless remote control | |||||
| Lighting system | Underwater LED lights *2 | |||||
Every machine supports matched high-pressure water guns and mechanical grab arms to process mixed sludge, plastic waste, and gravel sediment.
Complete Working Principle Of Cutter Suction Dredger For Sale

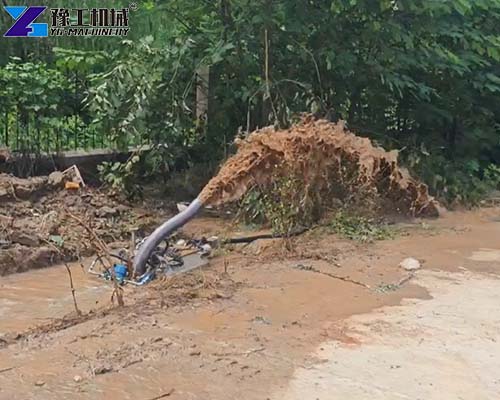

This intelligent underwater desilting machine operates via a closed-loop automatic workflow. It adopts an anti-slip crawler chassis to travel steadily on soft silt and uneven riverbed terrain. The front high-speed alloy cutter of the underwater dredging robot breaks compact mud and gravel into homogeneous slurry, which the high-flow pump extracts for long-distance pipeline discharge to shore sedimentation zones.
All traveling, cutting, and pumping operations are remotely adjusted from land without diver deployment. Environmental engineering teams deploy one to achieve continuous one-pass desilting without secondary site cleanup.
6 Core Competitive Advantages Of Underwater Dredging Robot
- Zero Diving Safety Hazards: Full shore remote operation eliminates drowning, toxic gas poisoning, and confined space accidents.
- Narrow Space Accessibility: Compact body enters pipelines, small ponds, and culverts unreachable by large floating dredgers.
- High-Concentration Slurry Pumping: Alloy cutter boosts the cutter suction dredger for sale, desilting efficiency 3–5 times compared to manual cleaning work.
- Intelligent Obstacle Avoidance: LiDAR, ultrasonic sensors, and visual cameras auto-navigate turbid, complex underwater environments.
- Modular Quick Deployment: Split component design simplifies land transportation and fast on-site assembly.
- Custom Upgrade Packages: Explosion-proof motor, HD underwater camera, and extended suction pipes are available for special industrial sites.
Global Full-Scene Application Fields Of Cutter Suction Dredger For Sale
- Municipal Drainage Works: Inspection wells and sewer desilting to prevent urban rainwater waterlogging
- River & Lake Ecological Restoration: Bottom sediment removal to restore water transparency and aquatic habitats
- Chemical & Sewage Treatment Plants: Underwater dredging robots clean sedimentation tanks to ensure they meet industrial environmental emission standards.
- Port & Wharf Maintenance: Shallow channel dredging to guarantee smooth vessel entry and exit
- Reservoir & Aquaculture Ponds: Silt removal to expand water storage and lower fish disease risks
- Post-Flood Disaster Reconstruction: Rapid sludge clearance after flood sediment accumulation
Step-By-Step Model Matching Guide For Dredge Cutter
- Narrow Pipeline & Small Pond Jobs: Lightweight YG-500/YG-600 fit confined narrow spaces
- Medium Park & Community Waterways: Balanced YG-700/YG-800 balance flow output and maneuverability
- Large Rivers & Port Projects: Heavy-duty YG-900/YG-1200 cutter suction dredger for sale for long-cycle, high-volume desilting
- Hazardous Chemical Factories: Optional explosion-proof motor assembly upgrade
- Deep Long-Distance Discharge: Select extended heating suction pipe configuration
Frequently Asked Questions About Underwater Dredging Robot
A1: Operating depth varies from 30m to 90m among different models; select specifications matching your project water depth.
A2: An explosion-proof motor is an optional factory upgrade for flammable gas industrial sites.
A3: Pump flow covers 100–250m³/h, drastically shortening construction cycles compared with manual dredging.
A4: Standard set includes robot main body, hydraulic power station, and 50m hydraulic hoses; sewage discharge pipes are purchased separately with supplier recommendations.
A5: Wear-resistant alloy stirring head prevents clogging when pumping mud and fine gravel mixtures.
A6: Single-operator wireless remote design only needs simple guidance before field operation.
Factory Supply & Global After-Sales Support Of Cutter Suction Dredger For Sale
All dredging robots pass continuous underwater load and hydraulic aging testing before seaworthy wooden export packaging. Multilingual operation manuals, hydraulic circuit diagrams, and discounted wear spare parts ship alongside each unit. Our engineering team for the dredge cutter provides free site layout planning and 24-hour remote video operation training for global dealers. Bulk purchasing contracts include long-term spare stock supply and 48-hour online fault troubleshooting service. Submit your project water depth, sediment type, and site size to receive a customized factory quotation instantly.
