Polyurethane foam spray machine price relates to versatile two‑component PU spraying hardware for building insulation and anti‑corrosion applications. This proportion‑controlled equipment mixes isocyanate and polyol raw materials on-site, then sprays foamed PU layers onto substrate surfaces. Multiple output‑rate configurations adapt to small‑scale renovation jobs and large‑volume new‑construction insulation projects.
Polyurethane Foam Spray Machine Price Complete Technical Specification Table
| Model | Host heating power(KW) | Pipe heating power(KW) | Heating power(KW) | Motor Power | Total power（KW） | Drive mode | output flowKg/Min | Support pipeline（m） | Power（V） |
| YG-III(H) | 7 | 2.5 | 9.5 | / | 9.5 | Pneumatic | 2-10 | 75 | 380 |
| YG-Q2600 | 9 | 2.5 | 11.5 | / | 11.5 | Pneumatic | 2-10 | 90 | 380 |
| YG-III(D) | 8 | 1 | 9 | / | 9 | Pneumatic | 2-10 | 30 | 380 |
| YG-Q2600(D) | 10 | 1 | 11 | / | 11 | Pneumatic | 2-10 | 30 | 380 |
| YG-H5600(D) | 18.5 | 1 | 19.5 | 3.75 | 23.5 | Hydraulic | 2-12 | 30 | 380 |
| YG-H-T40(D) | 18.5 | 1 | 19.5 | 3.75 | 23.5 | Hydraulic | 2-12 | 30 | 380 |
| YG-Q30 | 12.5 | 2.5 | 15 | / | 15.5 | Pneumatic | 2-10 | 90 | 380 |
| YG-Q40 | 14.5 | 3.5 | 18 | / | 18 | Pneumatic | 2-10 | 90 | 380 |
| JX-H5600 | 18.5 | 3.5 | 22 | 3.75 | 26 | Hydraulic | 2-12 | 105 | 380 |
| YG-H-T40 | 18.5 | 3.5 | 22 | 3.75 | 26 | Hydraulic | 2-12 | 105 | 380 |
| YG-H5600(T) | 21 | 4 | 25 | 3.75 | 29 | Hydraulic | 2-8 | 120 | 380 |
| YG-H-T50 | 21 | 4 | 25 | 3.75 | 29 | Hydraulic | 2-8 | 120 | 380 |
Working Principle Of Polyurethane Foam Machine For Sale
This PU spraying equipment adopts a dual‑pump proportional feeding architecture. Separate pumps deliver A‑component and B‑component raw materials, and the polyurethane foam spray machine price heats liquid raw materials inside host circulation pipelines to a preset operating temperature. Pressurized two‑part liquids travel through insulated heating hoses toward the spray gun assembly. Inside the spray gun chamber, isocyanate and polyol get fully mixed. After atomization, mixed liquid sprays onto the target base surface, where a chemical reaction occurs to expand and cure into a closed‑cell polyurethane foam insulation layer. Adjustable pressure and temperature parameters accommodate different environmental‑temperature construction conditions.
Core Operational Advantages Of Polyurethane Machine For Sale
- Precise proportional feeding: Dual‑pump system maintains stable 1:1 volume ratio to guarantee foam physical performance.
- Integrated circulating heating system: Constant‑temperature circulation avoids raw‑material condensation under low‑temperature on-site conditions.
- Wide construction adaptability: Polyurethane foam spray machine price supports roof, wall, tank, and pipeline spraying; fits both new‑build and renovation‑project requirements.
- Modular hose configuration: Replaceable spray‑hose assemblies satisfy short‑distance indoor and long‑distance high‑altitude operation.
- Stable high‑pressure output: Sustained working‑pressure design delivers uniform atomization for consistent foam‑layer thickness.
- Simple daily maintenance: Quick‑disassembly gun‑head structure shortens cleaning and component‑replacement workload for field crews.
Construction contractors can adjust pressure and temperature settings according to ambient temperature and substrate conditions.
Multi‑Domain Application Coverage For Polyurethane Foam Spray Machine Price
This two‑component PU spraying hardware fulfills insulation and anti‑corrosion tasks across multiple global engineering sectors:

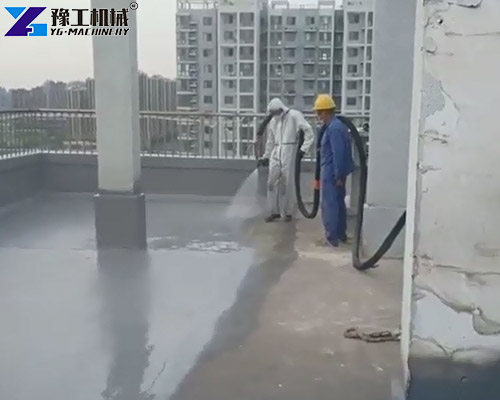

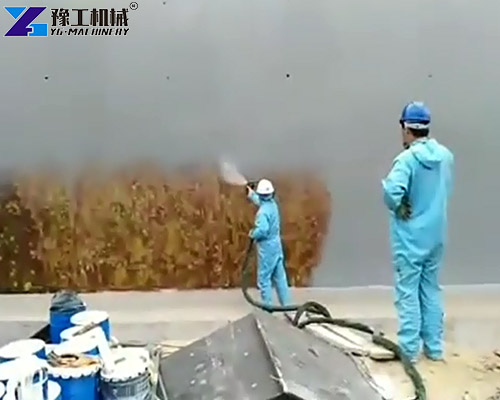

- Building Thermal Insulation: External wall, roof and basement closed‑cell foam insulation for residential and commercial buildings.
- Cold‑storage Construction: Foam‑insulation spraying for cold-storage warehouse walls, ceilings and partition structures.
- Pipeline Anti‑corrosion & Insulation: Thermal‑insulation spraying for buried and overhead industrial pipelines.
- Tank Anti‑corrosion Treatment: Anti‑corrosive PU coating for chemical and water‑storage metal tanks.
- Refurbishment Renovation Project: Old‑building energy‑saving reconstruction for wall and roof insulation renewal.
- Special‑structure Works: Insulation treatment for livestock‑raising houses and prefabricated‑building enclosures.
When undertaking large‑area continuous spraying assignments, a polyurethane foam machine for sale helps shorten overall onsite construction cycles.
Practical Procurement & Model‑Selection Guidance For Polyurethane Foam Machine For Sale
| YG-H-T50 | 2–8 kg/min | Medium and large insulation projects |
| YG-H5600T | 2–8 kg/min | Continuous spraying applications |
| YG-H-T40 | 2–12 kg/min | High-output insulation and coating |
| YG-H5600 | 2–12 kg/min | Large-area spraying projects |
| YG-Q30 | 2–10 kg/min | Mobile and flexible applications |
| YG-IIIH | 2–10 kg/min | Compact spraying applications |
Frequently Asked Technical Questions About Polyurethane Machine For Sale
Review common technical and configuration‑related questions before ordering PU spraying machinery to eliminate pre‑purchase doubts.
A: It adopts two‑component polyurethane A/B raw materials with a standard 1:1 volume mixing ratio for on-site foaming reaction.
A: Yes. Built‑in circulating heating system preheats liquid raw materials, allowing construction under low‑ambient‑temperature conditions.
A: Working flow setting, ambient temperature, raw‑material quality, and operator proficiency will influence real‑world spraying area per hour.
A: Yes. Spray guns, sealing rings, and heating hoses are supplied as independent spare‑part options for wearing‑component replacement.
A: Factory supplies pre‑shipment inspection, operation manuals, consumable‑parts supply, and remote technical troubleshooting for global dealers and end‑users.
Factory Supply & Customer Inquiry Support For Polyurethane Foam Spray Machine Price

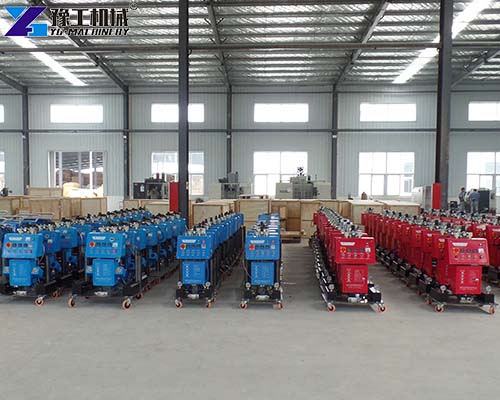

YG Machinery manufactures full YG‑series PU foam spraying equipment alongside complementary construction‑protection machinery portfolios. Each finished unit completes a full‑load running‑in inspection before seaworthy export‑grade packaging.
Every shipment of polyurethane machines for sale includes operation documentation and basic fitting components. Our engineering team provides model‑selection consultation and online technical assistance for global dealers and direct end‑users. Bulk‑purchase contracts enjoy priority spare‑part‑delivery privileges. Submit your daily spraying‑area requirement and main construction scenarios to get your customised factory quotation.
