Malaysia’s packaging, label, and flexible film manufacturing sector keeps expanding. Numerous local mid-size converting factories frequently face practical production obstacles: frequent order format switching, high raw material waste, limited on-site operator manpower, and demand for consistent narrow-width slitting quality. Many local plant managers look for a paper slitting and rewinding machine to upgrade old roll processing lines. This YG automatic converting machine completes unwinding, deviation correction, precision slitting, and rewinding in one continuous workflow, handling paper, film, aluminum foil, and nonwoven materials, and meets 24-hour continuous production requirements for Southeast Asian packaging workshops.
Slitter Rewinder Technical Specifications
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Min. width of slitting | 30mm | 30mm | 30mm |
| Max. diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |

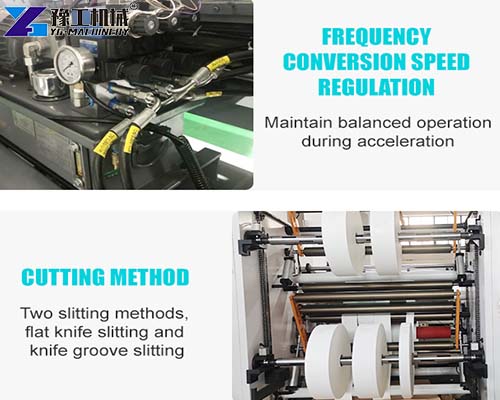

Interchangeable circular and razor cutter sets support different-thickness substrate processing. When comparing available converting equipment, a slitter rewinder for sale brings flexible tooling choices for diverse local packaging material orders.
Real Customer Application Case
Customer Background
An anonymous Malaysian local packaging converter produces adhesive labels, BOPP packaging film, and nonwoven raw material rolls. Previously, the factory operated outdated slitting equipment. It suffered from unstable cutting precision, long tool change downtime, and relatively high raw material loss, restricting output for growing local order volumes.
Key Construction Pain Points
- Frequent product specification changes bring repeated tool setting and long production downtime.
- Thin film materials easily wrinkle or stretch on old slitting units, raising scrap rates.
- On-site skilled operators are limited, increasing labor cost pressure.
- Existing equipment cannot guarantee consistent ±0.2mm slitting tolerance for label products.
- Local after-sales technical support resources for imported converting machinery are insufficient.
Why Malaysian Converting Plants Choose YG Paper Slitting And Rewinding Machine
- Stable ±0.2mm slitting accuracy: Thick stress-relieved steel frame reduces material waste for label and film production.
- 10-minute quick-change blade assembly: Shortens downtime for factories with frequent order specification switching.
- Servo closed-loop tension control: Prevents wrinkling and stretching of thin film and soft paper substrates common in local workshops.
- Wide range material compatibility: Processes paper, foil, tape, and nonwoven fabrics to match multi-product line demands.
- Single operator dual machine capability: Helps factories ease pressure from limited on-site labor resources.
- Low maintenance structural layout: Reduces daily repair workload for plants without abundant professional maintenance staff.
While conducting procurement evaluation, production supervisors pay close attention to reliable running performance delivered by the slitting machine price under long-shift continuous production conditions.
Factory Customized Solution

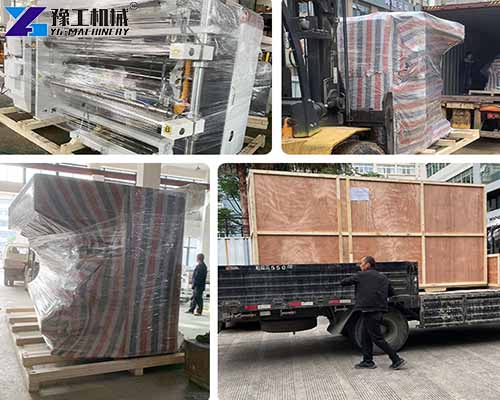

YG Machinery conducted preliminary technical research, collecting information on the factory’s master roll width, processed substrates, workshop power supply, and factory dimensions. The YG 1600 model was selected, matched with a maximum master roll of 1600mm, and equipped with a dual-blade assembly of circular and shaving blades to meet the needs of multi-substrate mixed production. The paper slitting and rewinding machine underwent a 72-hour whole-machine aging test before leaving the factory; it was packaged in fumigated solid wood for sea freight, and came with a complete set of customs clearance documents, an English operation manual, and electrical schematics.
Considering the limited local maintenance resources in Malaysia, YG provided remote unpacking verification upon arrival and online installation and commissioning guidance; after delivery, 24/7 remote video technical support for the slitting machine was provided, and vulnerable parts such as blades and expansion shafts enjoyed priority supply channels. This slitting and rewinding machine, available in stock, can process multiple types of roll materials in one machine, eliminating the need to purchase multiple dedicated machines, saving factory space and procurement investment.
Actual Construction Results
Production in a high-temperature, high-humidity workshop in Malaysia, utilizing a servo tension system, has improved film wrinkling issues and reduced raw material waste by 8-12%. The 10-minute quick-change blade structure significantly reduces downtime for multiple order changes; a single person can manage two paper slitting and rewinding machines, effectively alleviating manpower shortages. Even with shift work, the machine maintains a ±0.2mm cutting accuracy, burr-free cuts, and improved finished product yield.
For debugging and blade maintenance issues, the factory can directly connect with the YG technical team, prioritizing the shipment of consumable parts and minimizing production line downtime. The factory’s production manager commented: “The equipment is well-suited to the hot and humid workshop in Malaysia and our multi-material production, offering high changeover efficiency. YG’s remote technical service compensates for local maintenance shortcomings, effectively reducing raw material and labor costs.”
Manufacturer Closing Summary
High-precision roll slitting rewinding equipment satisfies Malaysia’s booming packaging converting market demands. slitter rewinder for sale handles labels, film, and nonwoven fabric processing for mid-size factories. If you operate similar converting plant projects in Malaysia or Southeast Asia, evaluate this series for balanced production capacity and operating cost performance. If you face problems with high scrap rates, frequent order-switch downtime, or manpower shortages in your workshop, get in touch with our engineering team. We provide model selection suggestions, full technical datasheets, and factory-direct quotations tailored to your substrate specifications and daily output targets.
