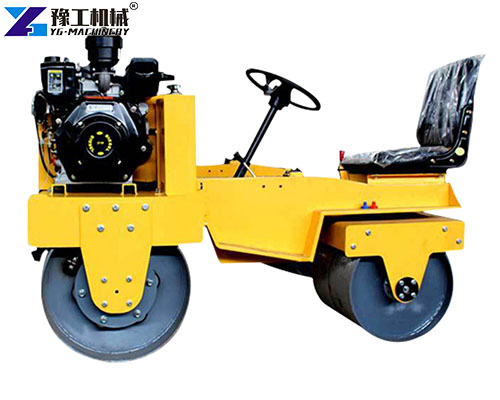

Roller machine for roads features an ultra-compact body, designed exclusively for medium and small municipal construction job sites. It addresses a common industry pain point: large heavy rollers cannot enter narrow trenches, sidewalk gaps, and confined working areas. The equipment relies on its own dead weight plus high-frequency vibration to squeeze soil, asphalt, and gravel tightly together, greatly improving foundation density and pavement flatness.
This light-duty compaction machine becomes a must-have attachment for municipal maintenance teams and small contractors. Instead of renting oversized heavy machinery, users can rely on this compact unit to finish neat, uniform compaction in limited construction space.
Specs & Performance Data Of YG Series Mini Road Roller Compactor
| Model | YG-600S | YG-880 | YG-850 | YG-880 |
| Power | 5.5HP | 25HP/20HP | 6.0HP | 25HP/20HP |
| Walk Speed | 2.4km/h | 0-5KM/H | 0-4km/h | 0-5KM/H |
| Climbing Capacity | 25% | 30% | 30% | 30% |
| Static Linear Load | 45n/cm | 45n/cm | 45n/cm | 45n/cm |
| Exciting Force | 20KN | 50KN | 20KN | 50KN |
| Vibration Frequency | 70HZ | 70HZ | 70HZ | 70HZ |
| Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Water Tank | 15L | 15L | 15L | 15L |
| Hydraulic Oil Tank | 3.6L | 19L | 3.6L | 19L |
| Engine Model | HONDA GX160 | GX390 | HONDA GX270 | GX390 |
| Steel Wheel Size | 426x600mm | 800x850mm | 580x700mm | 800x850mm |
| Package Size | 1050x900x1200mm | 2100*1000*1650 mm | 1550x900x1200mm | 2100*1000*1650 mm |
| Weight | 330kg | 1000kg | 750kg | 1000kg |
Contact us to get customized parameter matching sheets based on your construction space and pavement materials. The compact structural design of the roller machine for roads balances light transport weight and stable deep compaction power.
Wide Application Scenarios For Municipal Compaction Works
This small vibratory roller fits all narrow-area compaction projects across municipal, landscape, and road maintenance industries:
- Urban sidewalk renovation, driveway repair and small asphalt patching jobs;
- Bridge edge compaction, private parking lot ground leveling and sports field foundation treatment;
- Trench backfilling, manhole surrounding compaction and narrow street strip maintenance;
- Landscape walkway paving and residential courtyard ground consolidation. This roller machine for roads is widely recognized by municipal road departments as the ideal compaction tool for scattered small-scale repair tasks.
4 Outstanding Performance Advantages Of A Roller Machine For Road Construction
- Tiny turning radius: The narrow frame can freely operate inside tight trenches without leaving uncompacted dead corners;
- Stable and easy-start power system: Matched original Honda gasoline engines maintain smooth startup even under low-temperature outdoor environments;
- Stepless hydraulic transmission: No complicated gear shifting operation; operators switch forward and reverse directions with simple control levers;
- Humanized foldable handle: Multi-angle adjustable arm fits operators of different heights; the whole machine surface adopts plastic spraying treatment for long-term rust and corrosion resistance.
Our technical team provides free site matching suggestions for all YG roller models. Every structural upgrade of the roller machine for roads targets lower operation difficulty and longer outdoor service life.
Core Differences Between Plate Tamper And Road Compaction Roller
Many new contractors confuse plate tampers with small road rollers, while they differ fundamentally in working principle and applicable scenarios:
- Working logic of road rollers: Combine steel drum dead weight and vibration to roll flat large ground areas with high efficiency and smooth finished surfaces;
- Working logic of plate tampers: Generate compacting force via high-frequency bottom plate impact, suitable for ultra-narrow dead corners such as wall edges and tiny trench gaps;
- Standard matched construction flow: Use plate tampers to handle hard-to-reach corners first, then deploy a roller machine for roads for large-area rolling and surface finishing.
Our machine can work with plate tampers to realize full-range ground compaction without missing any construction area.
Three Main Classifications Of Roller Machine For Road Construction
According to power supply mode and operation style, small ground compaction machinery is divided into three mainstream categories for diversified job demands:
- Gasoline walk-behind plate tamper: Supports bidirectional movement, delivers strong tamping force for roads, squares, and trench edge consolidation;
- Electric vibratory plate tamper: Low noise and low maintenance cost, perfect for indoor basements and narrow urban tunnel construction;
- Walk-behind single-drum vibratory roller: Compact body, foldable transport handle, low running noise, convenient transfer for municipal road maintenance.
If you need small-area corner compaction matching this equipment, check our hydraulic plate tamper series. Different classification models of the roller machine for roads fully cover indoor, outdoor, small, and medium compaction demands.
Professional Selection Guide For Matching Roller Machine For Roads
- Construction space restriction: Select lightweight YG-600S for ultra-narrow alleys and manhole surrounding compaction; choose YG-850 / YG-880 for medium-width road base and full asphalt paving projects;
- Compaction material standards: Pick YG-880 with 50KN high exciting force for subgrade and gravel base to prevent later foundation settlement; all models are equipped with standard 15L water tanks to stop asphalt adhesion during pavement repair;
- Terrain and transfer frequency: YG-850 and YG-880 reach 30% maximum climbing capacity for sloped trench backfilling; lightweight models cut transport time for frequently shifted construction sites;
- Long-term operation cost balance: All YG series are equipped with fuel-saving Honda engines and universal standard wear parts, effectively reducing daily fuel consumption and spare part replacement expenditure.
Frequently Asked Questions About Mini Road Roller Compactor
A1: The lightweight YG-600S, weighing only 330kg, is the optimal choice for ultra-confined construction zones.
A2: YG-850 and YG-880 can handle slopes up to 30%, stable for sloped trench backfilling projects.
A3: Clean residual asphalt inside the 15L water tank every day to avoid blockage and guarantee a flat pavement finish.
Contact Us To Get Factory-Direct Customized Compaction Solutions
YG Machinery is a professional manufacturer specializing in compact road compaction equipment. Our full series of YG roller machines for roads can meet the needs of all construction projects with limited working space, ranging from small courtyard renovations to large municipal road maintenance.
If you need full model specification sheets, wholesale factory prices, and personalized equipment configuration, send your inquiry to our professional sales team right now. Combine a mini road roller compactor with an excavator rock saw attachment for complete municipal construction support solutions.
