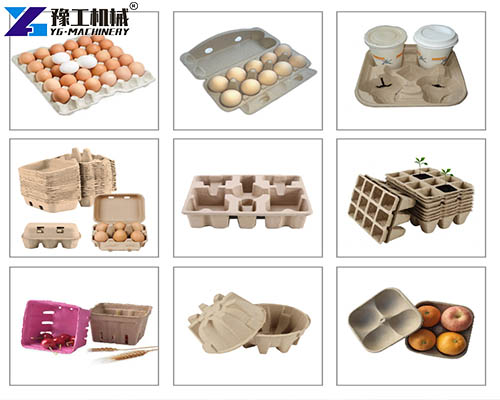

Egg carton making machine can produce egg cartons, fruit holders, coffee cup trays, and electronic buffer liners to replace plastic foam packaging. Recyclable waste paper is the core raw material for pulp molding equipment. Biodegradable finished goods have their own low raw material cost and full recyclability, bringing long-term profit space for packaging factories and poultry farms.
Unified Complete Production Line Parameter Table For Egg Tray Maker Machine
| Model | YG-1*3 | YG-1*4 | YG-3*4 | YG-4*4 | YG-4*8 | YG-5*8 | YG-6*8 |
| Capacity (pcs/h) | 1000 | 1500 | 2500 | 3500 | 4500 | 5500 | 7000 |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 |
| Total Power (kW) | 40 | 40 | 50 | 60 | 130 | 140 | 186 |
| Electricity Consumption (kw/h) | 28 | 29 | 35 | 42 | 91 | 98 | 130 |
| Worker | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 |
Fuel options include coal, natural gas, diesel, and LPG. Clients can customize all molds when purchasing our machine.

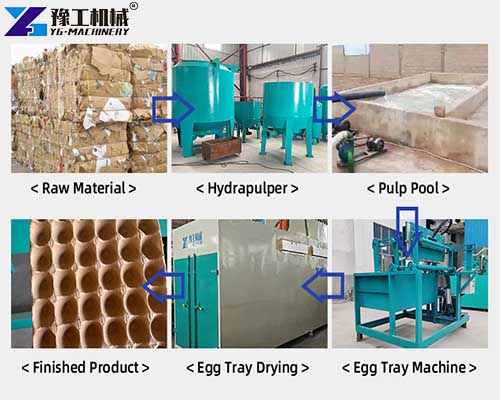

Complete Working Principle Of Egg Carton Making Machine
The full pulp molding workflow contains 6 interconnected modules. paper egg tray making machine crushes waste paper into even pulp via a pulper; then the vacuum system adsorbs pulp onto metal molds to form wet blanks.
Wet semi-products enter a constant-temperature drying tunnel, followed by hot pressing, shaping, automatic stacking, and counting. All wastewater inside the line circulates back to the pulping tank for reuse. Central PLC touch control enables continuous unmanned production for 24 hours.
7 Core Competitive Advantages Of Paper Egg Tray Making Machine
- PLC Intelligent Control: Touchscreen one-key operation, auto stacking & counting, cut labor expense by over 60% vs semi-auto devices.
- Fast Mold Replacement: Finish mold swap within 30 mins to produce egg cartons, fruit trays, and electronic packages on one set of equipment.
- Energy-Saving Drying Tunnel: Circulating hot-air structure saves 30% energy; finished moisture is controlled at 8%-12% steadily.
- Multi-Layer Safety Protection: Multi-layer safety devices stop overload, leakage, and overheating. Factories use an egg carton making machine to cut costs and make various pulp packages.
- High Molding Yield: Precision vacuum system lifts finished pass rate above 99% for long, stable mass production.
- Zero-Pollution Production Line: Recycled waste paper as raw material, no toxic exhaust or sewage discharge, meets global green packaging standards.
- Low Maintenance Cost: Stainless steel pulp tank, interchangeable wearing parts, real-time fault auto-alarm system.
Global Full-Scene Application Fields Of Egg Carton Making Machine
- Poultry Breeding Farms: Self-produce egg packaging trays to cut outsourcing packaging costs.
- Fresh Fruit Logistics: Shockproof pulp trays for long-distance apple and citrus transportation.
- Custom Packaging Factories: OEM pulp buffer trays for electronic components and gift sets.
- Egg Food Processing Plants: Outer packaging for preserved eggs and salted eggs to boost brand recognition.
- Agricultural E-Commerce: Anti-break express trays for online egg and fruit delivery.
- Chain Catering Brands: Standard egg storage trays for centralized warehouse management.
- Precision Electronic Manufacturing: Insulated cushion liners for small hardware parts.
- Premium Gift Packaging: Custom printed pulp trays for agricultural gift box matching.
Step-By-Step Model Matching Guide For Egg Tray Maker Machine
- Daily Output Matching: 1000-1500pcs/h small units for startup workshops; 4000-7000pcs/h rotary models for large industrial packaging plants.
- Workshop Space Matching: Natural drying suits factories with a large open yard; multi-layer metal dryer for compact indoor workshops.
- Production Batch Matching: Single flip models suit small mixed orders; rotary lines for mass output. Buy a paper egg tray making machine to unify factory production standards.
- Raw Material Adaptation: Pure waste carton uses a standard pulper; crop straw fiber needs a customized refining unit.
- Heating Fuel Selection: Natural gas/LPG for EU & US low-carbon factories; coal/diesel for remote industrial zones.
Frequently Asked Questions About Paper Egg Tray Making Machine
A1: Waste cartons, waste newspaper, office paper, and crop straw fiber are all usable without complex pretreatment.
A2: Yes, just replace dedicated molds within half an hour without modifying the main forming host.
A3: Closed circulating water system and fully degradable finished goods pass EU, Southeast Asia, and US eco packaging audits.
A4: No, matching dedicated fruit molds can retrofit existing forming equipment directly. Global pulp packaging investors contact the overseas sales team to get customized layout drawings and factory-direct quotations for an egg carton making machine.
A5: Free on-site or remote operation & mold replacement training; custom mold design for all pulp packaging sizes.
A6: Natural drying reduces initial investment if enough outdoor space is available; a metal dryer raises daily output with smaller floor occupation.
Factory Supply & Global After-Sales Support Of Egg Carton Making Machine
YG Machinery independently develops and full-process manufactures all pulp molding production lines. Each complete set passes continuous load and drying aging tests before seaworthy export packing. We deliver CE and ISO full qualification documents and multilingual operation manuals, together with long-term discounted spare parts.
Submit your target hourly output, workshop dimensions, and local heating fuel type to receive tailor-made production layout plans and overseas factory operation case videos. International poultry and packaging investors can order an egg tray maker machine with a full one-year whole-machine warranty and remote video troubleshooting service.
